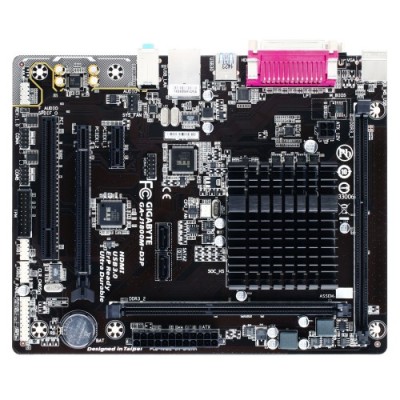

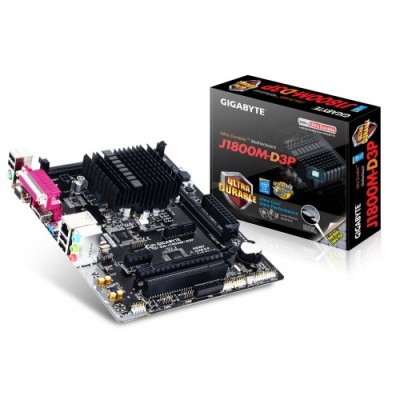

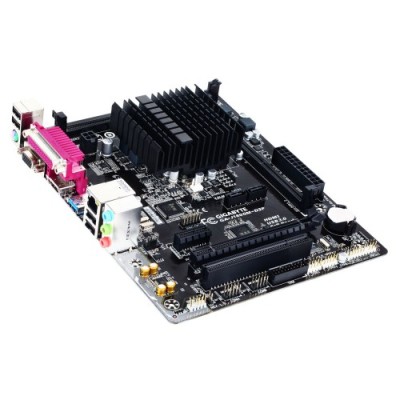

GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor

Description

GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor

• Built-in Intel® Celeronâ„¢ J1800 (2.41 GHz) Dual-Core processor

• GIGABYTE Ultra Durableâ„¢ Technology

• Dual channel DDR3/-L UDIMM slot support

• Audio Noise Guard with High Quality Audio Capacitors

• All Solid Capacitors with Humidity Protection New Glass Fabric PCB design

• LAN with high ESD Protection

• HDMI, D-SUB ports on rear panel

• GIGABYTE On/Off Charge for USB devices

• PCIe and PCI interface for wide-range expansion card selections

• USB
• Integrated in the SoC:
• 1 x USB 3.0/2.0 port on the back panel
• SoC + GL850 USB 2.0 Hub:
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 2 x SATA 3Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 2 x USB 2.0/1.1 headers
• 2 x serial port headersŠŠ
• 1 x Trusted Platform Module (TPM) header
• 1 x Clear CMOS jumper

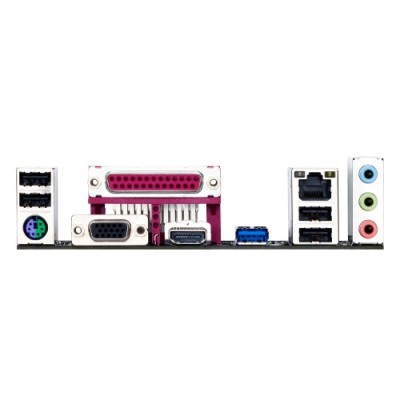

• Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 1 x parallel port
• 1 x USB 3.0/2.0 port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In, Line Out, Mic In)
• I/O Controller
• iTE I/O Controller Chip

03 Years Warranty
